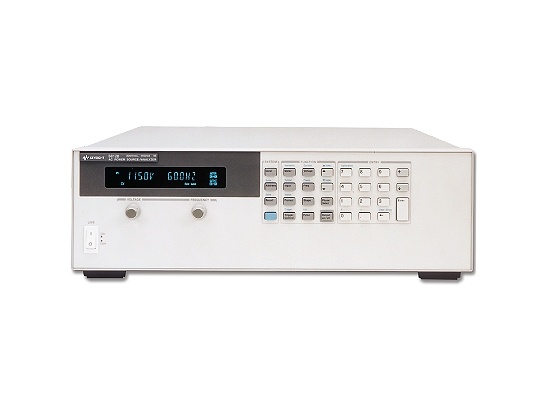

Agilent 6812B AC Power Source/Analyzer
Please use the request form to start a calibration services quote. You may also request equipment sales or repair services.
Description
The Agilent 6812B is ideal for applications such as power supply testing, UPS testing, avionics ATE, the testing of power factor corrected equipment and devices. Set up is made easy with the Graphical User Interface, which requires no programming. The Agilent 6812B provides a complete AC and DC power and measurement solution with extensive features to protect valuable DUTs. Save space on a lab bench or in a test rack with this flexible instrument. With the built-in power analyzer, this AC Power Source / Power Analyzer combines the capabilities of a multimeter, oscilloscope, harmonic analyzer, arbritrary waveform generator, and power analyzer all in one device. This instrument may also be used to produce DC power, either alone or as a DC offset to an AC waveform. An optional second power analyzer is available, which can be used independently from the source, or for dual-node measurements such as power supply input/output efficiency tests.
Specifications
– Input voltage: 100-240 VAC, 50/60 Hz
– Output power: 375 VA
– Output voltage: 0-300 Vrms
– Output current: 1.25-3.75 Arms
– Frequency range: 45-1,000 Hz
– Harmonic distortion: <0.5% (at full load)
– Accuracy: ±(0.2% of setting + 0.5% of range + 0.2% of full scale)
– Crest factor: 3:1 (up to 3 A), 2:1 (up to 3.75 A)
– Measurement functions: voltage, current, power, apparent power, reactive power, power factor, crest factor, frequency, phase angle, impedance, THD
– Interfaces: GPIB, RS-232, USB
– Dimensions: 426 mm (W) x 177 mm (H) x 540 mm (D)
– Weight: 19 kg
Agilent 6812B is also available with the following specs and model:
- AC Power Source / Power Analyzer – 750VA / 300Vrms / 65A – Single Phase – GPIB – RS-232
