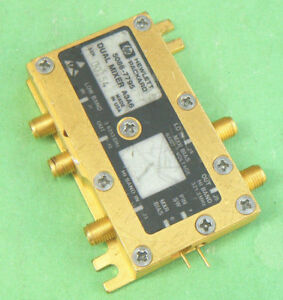

Agilent 5086-7795 Mixer
Please use the request form to start a calibration services quote. You may also request equipment sales or repair services.
Description
A high-performance part utilized in numerous electrical applications is the Agilent 5086-7795 Mixer. The telecommunications, aerospace, and defense industries all prize this mixer for its exceptional frequency range and low conversion loss. It is the perfect option for demanding applications because it is made to offer great performance in terms of linearity, noise, and spurious response. The Agilent 5086-7795 Mixer is incredibly durable and reliable, guaranteeing continued operation even in adverse conditions. It is a flexible option for a variety of electronic systems due to its small size and straightforward integration capabilities. The Agilent 5086-7795 Mixer is an excellent part that offers outstanding performance, dependability, and versatility, making it a crucial tool for many electronic applications.
Specifications
– Frequency range: 2 GHz to 18 GHz
– Conversion loss: 7 dB typical
– Isolation: 20 dB typical
– LO power: +20 dBm maximum
– LO frequency range: 2 GHz to 18 GHz
– RF power: +20 dBm maximum
– Input P1dB: +10 dBm typical
– Input IP3: +20 dBm typical
– Output P1dB: +10 dBm typical
– Output IP3: +20 dBm typical
– Supply voltage: +8 VDC
– Supply current: 100 mA typical
– Package type: SMT
– Dimensions: 0.75 in x 0.75 in x 0.15 in
