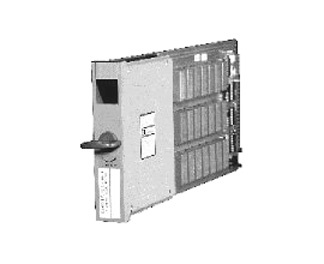

Agilent 44421A Relay Multiplexer
Please use the request form to start a calibration services quote. You may also request equipment sales or repair services.
Description
A versatile and effective tool for electrical test and measurement applications is the Agilent 44421A Relay Multiplexer. Multiple instruments or devices can be connected to a single channel using this multiplexer, which is made to route multiple signals between a common terminal and various other terminals. The Agilent 44421A ensures precise and dependable signal routing thanks to its high-speed switching capabilities and reduced insertion loss. It is adaptable to diverse testing requirements since it provides a wide range of setup options, including various matrix sizes and switch kinds. This relay multiplexer is a useful option for both production and laboratory settings due to its small size and simple interface.
Specifications
– 20-channel relay multiplexer
– Maximum switching voltage: 300 VDC or 220 VAC
– Maximum switching current: 1 A
– Maximum carrying current: 2 A
– Maximum power: 60 W
– Isolation voltage: 1000 VDC or 707 VAC
– Insertion loss: <0.2 dB
– Crosstalk: < -75 dB at 1 MHz
– Switching time: <2 ms
– Life expectancy: 1 x 10^7 operations
