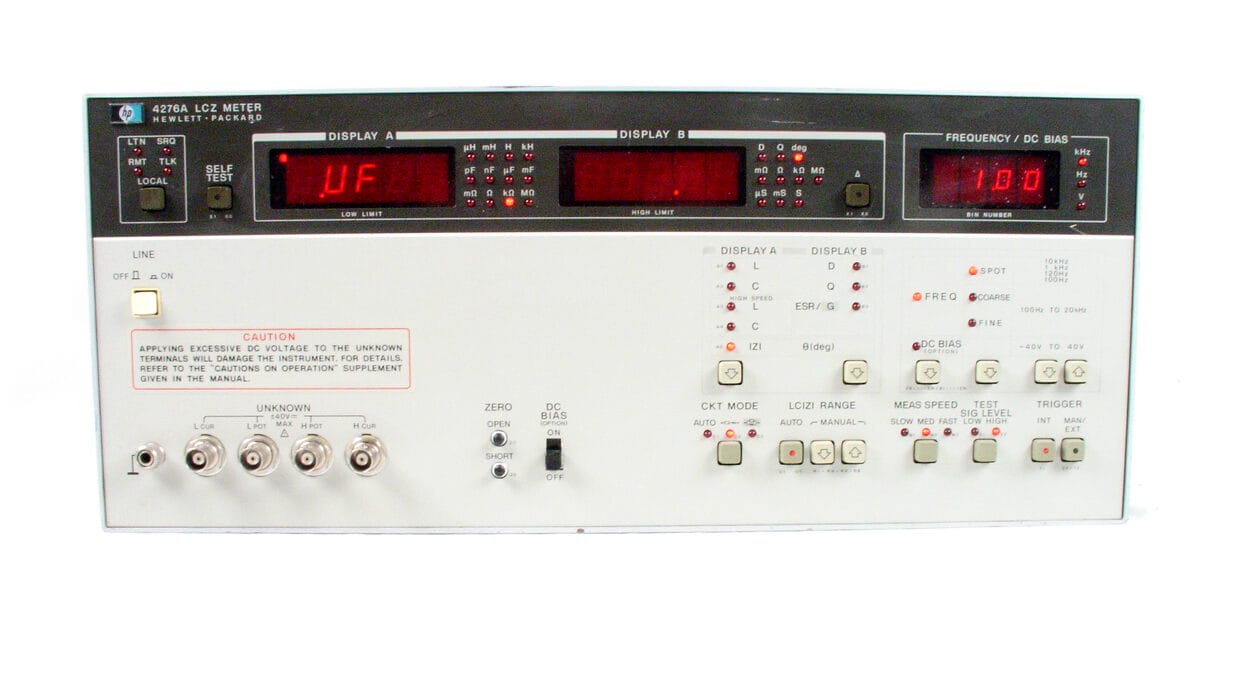

Agilent 4276A Used LCZ Meter
Please use the request form to start a calibration services quote. You may also request equipment sales or repair services.
Description
An extremely sophisticated and trustworthy tool for determining the impedance properties of electronic materials and components is the Agilent 4276A Used LCZ Meter. This meter is well suited for a number of applications in sectors like telecommunications, automotive, and aerospace because to its wide frequency range and great accuracy. The Agilent 4276A has an easy-to-use interface and a user-friendly design that make it simple to operate and effectively capture data. It is perfect for both laboratory and outdoor use due to its small size and portability. The Agilent 4276A Used LCZ Meter provides accurate and dependable impedance measurement results for research, quality control, and production testing.
Specifications
– Model: Agilent 4276A
– Type: LCZ Meter
– Frequency Range: 100 Hz to 100 kHz
– Measurement Functions: LCR (Inductance, Capacitance, Resistance), Ls, Lp, Cs, Cp, D, Q, θ, |Z|, |Y|, X, B, R, G
– Measurement Accuracy: ±0.05% of reading ±0.05% of range
– Measurement Speed: Up to 30 measurements per second
– Display: 4.5-digit LED display with 0.01% resolution
– Test Voltage: 1 Vrms, 0.25 Vrms, 0.05 Vrms
– Test Current: 1 Arms, 100 mArms, 10 mArms
– Test Signal Level: Open Circuit Voltage: 10 mV to 1 Vrms, Short Circuit Current: 5 mA to 1 Arms
– Test Signal Frequency: 20 Hz to 100 kHz
– Measurement Terminal: 5-terminal measurement system (4-terminal for resistance measurement)
– Interfaces: GPIB (IEEE-488), RS-232, Handler interface
– Power Requirements: 100-240 VAC, 50/60 Hz
– Dimensions: 426 mm (W) x 177 mm (H) x 504 mm (D)
– Weight: 12.2 kg (27 lb)
Agilent 4276A is also available with the following specs and model:
- LCZ Meter – 100Hz-20kHz
