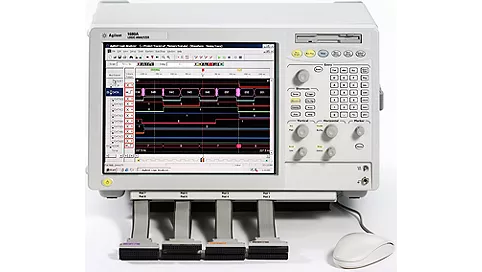

Agilent Technologies 1682AD Logic Analyzer – 68ch / 800MHz Timing / 200MHz State / 2M Depth – Standalone
Please use the request form to start a calibration services quote. You may also request equipment sales or repair services.
Description
The Agilent Technologies 1682AD Logic Analyzer is a device specifically created to analyze and resolve issues within digital logic circuits. It offers a wide range of 68 channels for capturing and monitoring signals. The analyzer is equipped with impressive timing capabilities, reaching up to 800MHz, and can perform state analysis at a speed of 200MHz, ensuring precise and accurate measurements. Additionally, it has a generous depth of 2M, enabling the capture of long sequences of data. With its standalone feature, the Agilent Technologies 1682AD Logic Analyzer serves as a dependable and efficient tool for engineers and technicians to debug and analyze intricate digital systems.
Specifications
– Model: Agilent Technologies 1682AD
– Type: Standalone logic analyzer
– Channel count: 68 channels
– Timing analysis bandwidth: 800 MHz
– State analysis bandwidth: 200 MHz
– Maximum depth: 2 million samples
– Connectivity: Standalone operation, no need for external computer
– Trigger options: Advanced trigger capabilities for efficient debugging
– Probing options: Various probing options available for different applications
– Display: High-resolution color display for easy data analysis
– Software: Comes with software for data analysis and debugging
– Compatibility: Compatible with various industry-standard protocols
– Storage: Ample storage capacity for capturing and analyzing large data sets
– Performance: High-performance hardware for accurate and reliable measurements
– User-friendly interface: Intuitive user interface for easy operation
– Versatile: Suitable for a wide range of applications and industries.
