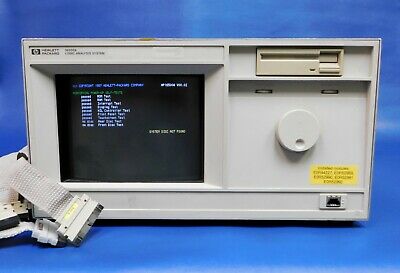

Agilent 16500A Logic Analyzer
Please use the request form to start a calibration services quote. You may also request equipment sales or repair services.
Description
An effective and adaptable tool for developing and debugging digital circuits is the Agilent 16500A Logic Analyzer. It is ideal for a variety of applications thanks to its great performance and adaptability. The 16500A can record and analyze signals at speeds of up to 2 GHz thanks to its high-speed state analysis, enabling reliable measurements even for complex and quickly varying digital signals. Additionally, it supports a sizable number of input channels, enabling users to simultaneously monitor several signals. A user-friendly interface, straightforward controls, and a full complement of analytic tools are all provided by the 16500A, allowing for effective signal analysis and troubleshooting. Overall, engineers and technicians working with digital circuits will find the Agilent 16500A Logic Analyzer to be a dependable and effective tool.
Specifications
– Channels: 68
– Maximum State Speed: 125 MHz
– Maximum Timing Speed: 500 MHz
– Maximum Record Length: 32 Mb
– Maximum Acquisition Memory: 2 Gb
– Data Width: 4, 8, 16, or 32 bits
– Compatibility: TTL, ECL, CMOS, LVDS, LVPECL, PECL, HSTL, SSTL, GTL, GTL+, GTLP, CML, LVCMOS
– Triggering Modes: Edge, Pulse, Glitch, Window, Transition, Pattern, State, Delay, Setup/Hold, Sequence, Count
– Input Impedance: 100 kΩ || 2.7 pF
– Input Voltage Range: -2 V to +7 V
– Input Threshold Range: -2 V to +7 V
– Input Hysteresis Range: 0.2 V to 1.5 V
– Output Current: ±8 mA
– Output Voltage Range: 0 V to +5 V
– Output Rise/Fall Time: 1 ns to 10 ns
– Output Delay Time: 0 ns to 100 ns
– Dimensions: 17.2 x 10.3 x 15.8 inches
– Weight: 35 lbs
