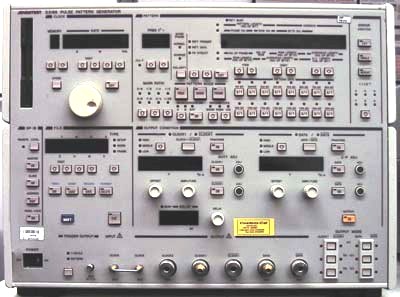

Advantest D3186 Pulse Pattern Generator
Please use the request form to start a calibration services quote. You may also request equipment sales or repair services.
Description
The Advantest D3186 Pulse Pattern Generator is an advanced and dependable piece of equipment utilized in the electronics and telecommunications field. It is designed to produce precise and intricate pulse patterns with exceptional accuracy and minimal variation. This generator offers a wide range of pulse widths, spanning from picoseconds to microseconds, and can function at high frequencies reaching several hundred megahertz. With its adaptable and user-friendly interface, engineers and researchers can effortlessly create and personalize pulse patterns to suit their specific requirements. The Advantest D3186 Pulse Pattern Generator is a crucial instrument for testing and evaluating various electronic devices, including digital circuits, semiconductor components, and high-speed communication systems.
Specifications:
– Model: Advantest D3186
– Pulse Pattern Generator
– Frequency range: DC to 12.5 Gbps
– Pulse width: 20 ps to 1024 ns
– Amplitude range: -2 V to +2 V
– Output impedance: 50 ohms
– Built-in clock source with selectable frequencies
– Support for various modulation formats including NRZ, RZ, and RZ-Duo
– Multiple output channels with independent control
– High-speed data pattern generation for testing high-speed digital communication systems
– User-friendly interface with intuitive controls and display
– Flexible triggering options for synchronization with other test equipment
– Compact and portable design for easy setup and transportation.
also available with the following specs and models:
- Pulse Pattern Generator – 12Gb
